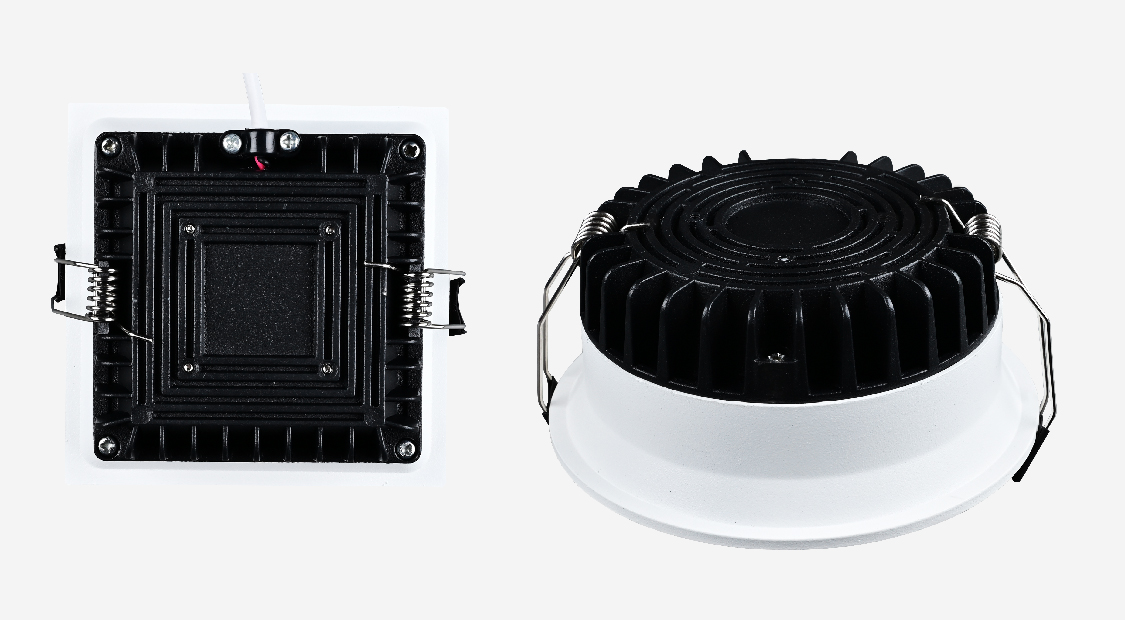

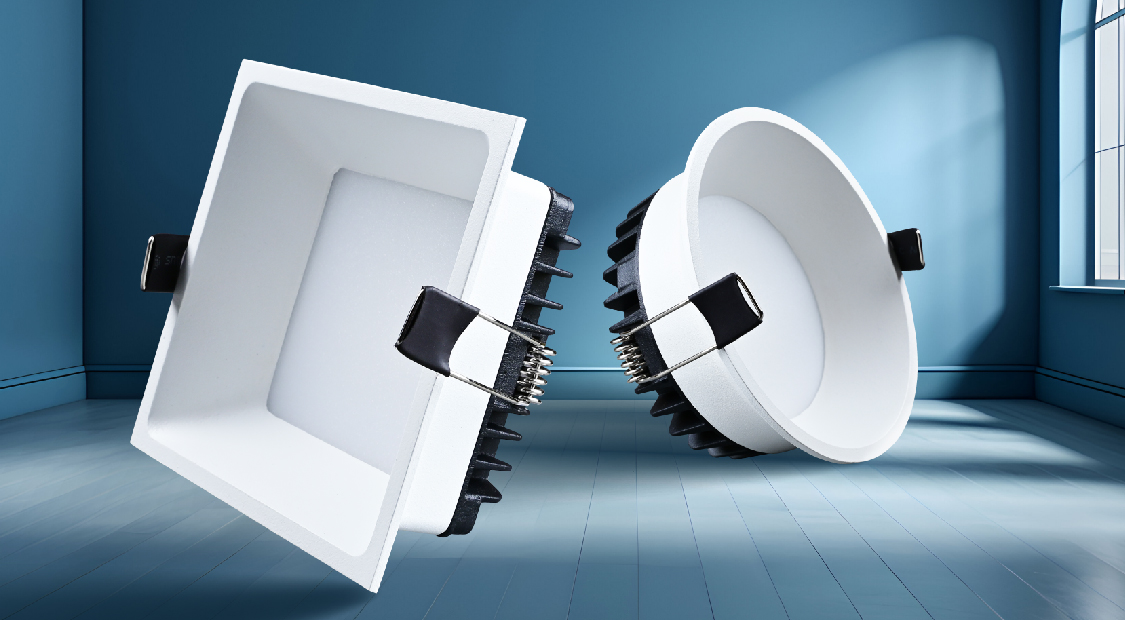

ALU DEEP RECESSED DOWN LIGHT – KGN

Product Description

Specifications

Housing	Aluminium
Input Voltage	AC 220-240V, 50Hz
Body Colour	Black, White
CRI	≥80
Light Source	SMD LED (2835)
Driver	Non-Integrated (Isolated)
Diffuser	PS
High Voltage	380V AC

Residential

MODEL NO	WATTAGE	COLOUR TEMP (CCT)	LUMEN (LM)	DIMENSION (MM) A x B	CUT-OUT (C)
Deep Recessed Down Light RD/SQ	10W	6500K/4000K/3000K	1000	109.5×109.5 mm	100 mm (3″)
Deep Recessed Down Light RD/SQ	12W	6500K/4000K/3000K	1200	109.5×109.5 mm	100 mm (3″)
Deep Recessed Down Light RD/SQ	15W	6500K/4000K/3000K	1500	100×100 mm	100 mm (3″)
Deep Recessed Down Light RD/SQ	18W	6500K/4000K/3000K	1800	134×134 mm	134 mm (5″)
Deep Recessed Down Light RD/SQ	24W	6500K/4000K/3000K	2400	158×158 mm	158 mm (6″)
