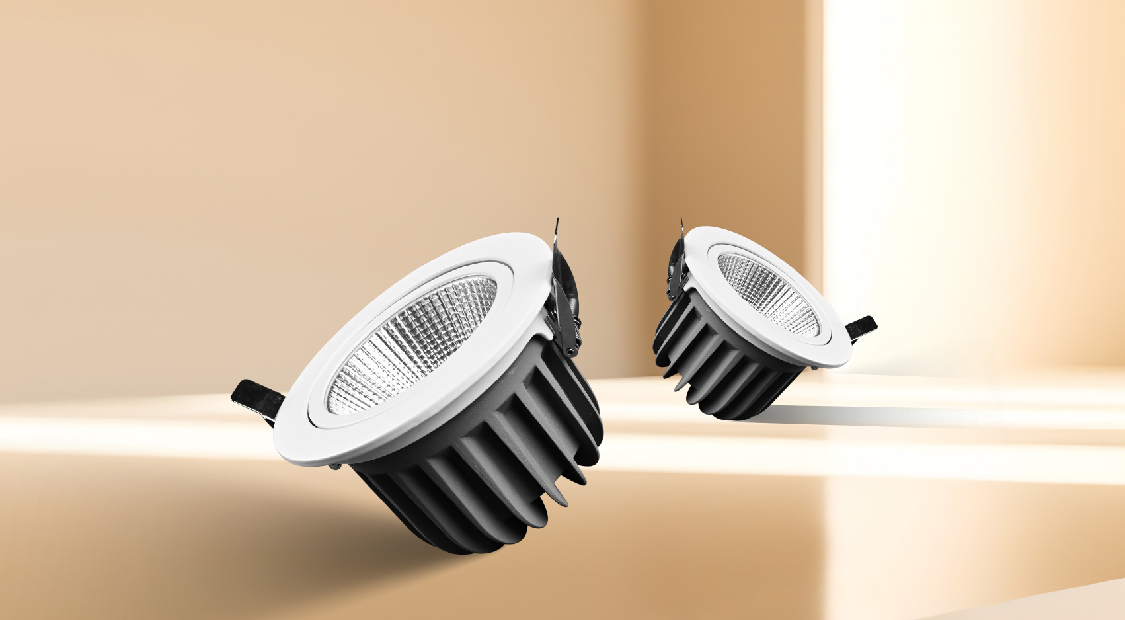

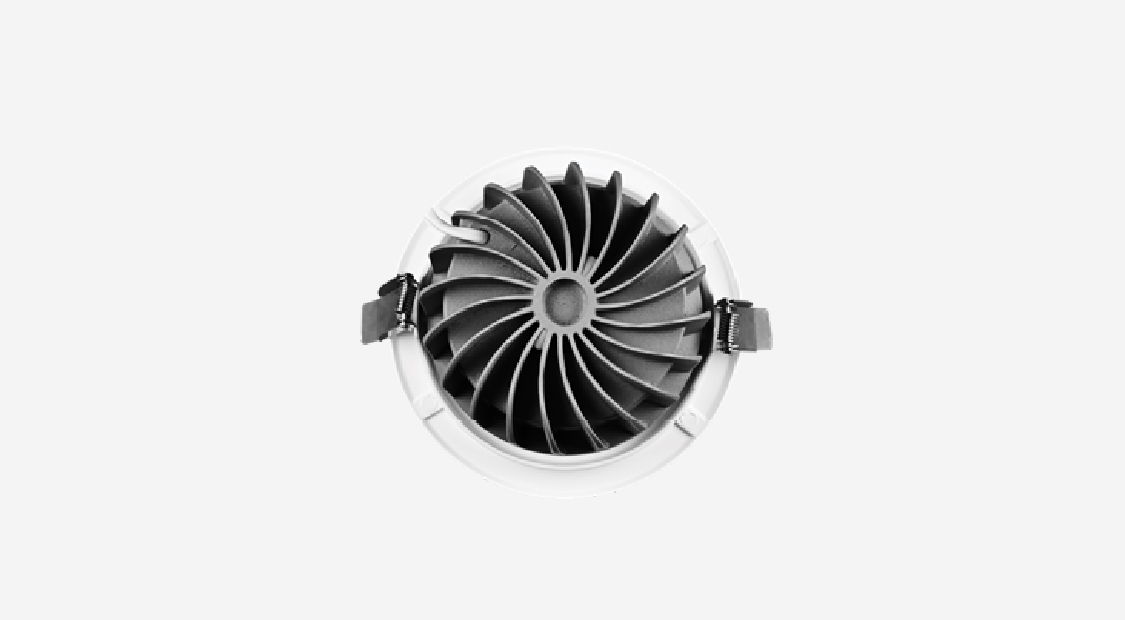

ALUMINIUM Swivel Cob – KGN

Product Description

Specifications

Housing	Aluminium
Input Voltage	AC 220-240V, 50Hz
Body Colour	Grey
CRI	≥80
Light Source	COB
Driver	Non-Integrated (Isolated)
Diffuser	PC/Glass
High Voltage	380V AC

Residential

MODEL NO	WATTAGE	COLOUR TEMP (CCT)	LUMEN (LM)	DIMENSION (MM) A x B	CUT-OUT (C)
Aluminium Swivel COB	3W	6500K/4000K/3000K/3CCT	270	66×39 mm	55 mm (2.2″)
Aluminium Swivel COB	7W	6500K/4000K/3000K/3CCT	630	87×56 mm	70 mm (2.75″)
Aluminium Swivel COB	12W	6500K/4000K/3000K/3CCT	1080	71×85 mm	85 mm (3.3″)
Aluminium Swivel COB	15W	6500K/4000K/3000K/3CCT	1350	71×85 mm	85 mm (3.3″)
Aluminium Swivel COB	18W	6500K/4000K/3000K/3CCT	1620	115×72 mm	95 mm (3.75″)
Aluminium Swivel COB	24W	6500K/4000K/3000K/3CCT	2160	135×85 mm	125 mm (5″)
Aluminium Swivel COB	30W	6500K/4000K/3000K	2400	160×105 mm	140 mm (5.5″)
Aluminium Swivel COB	50W	6500K/4000K/3000K	4000	60×120 mm	140 mm (5.5″)
