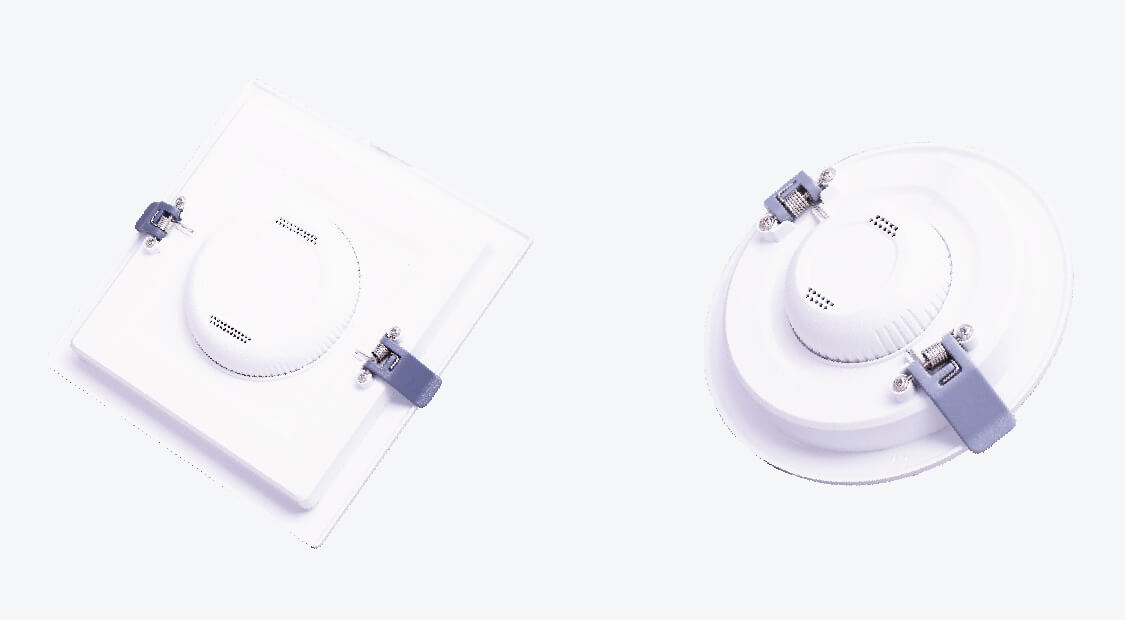

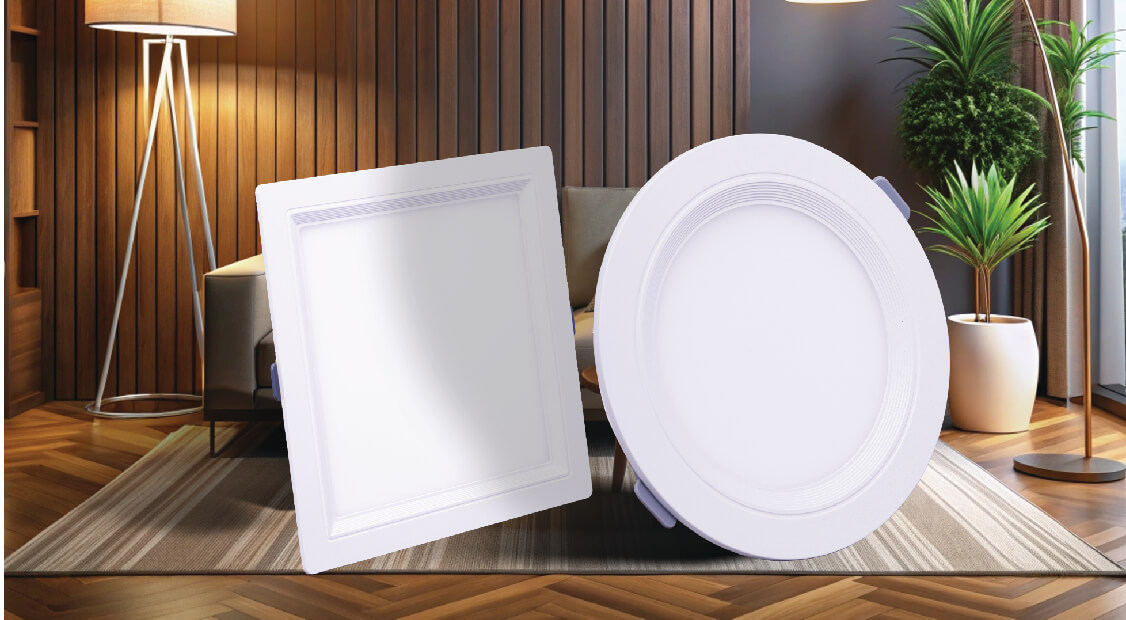

PC PANEL LIGHT – KGN

Product Description

Specifications

Housing	PC
Input Voltage	AC 220-240V, 50Hz
Body Colour	Orange, White
CRI	≥80
Light Source	SMD LED (2835)
Driver	Integrated (Non-Isolated)
High Voltage	380V AC, 440V AC

Residential

MODEL NO	WATTAGE	COLOUR TEMP (CCT)	LUMEN (LM)	DIMENSION (MM) A x B	CUT-OUT (C)
PC Panel Light (Zolo) RD/SQ	3W	6500K/4000K/3000K	195	86×86 mm	70 mm (2.75″)
PC Panel Light (Zolo) RD/SQ	6W	6500K/4000K/3000K	420	120×120 mm	100 mm (4″)
PC Panel Light (Zolo) RD/SQ	10W	6500K/4000K/3000K	700	144×144 mm	125 mm (5″)
PC Panel Light (Zolo) RD/SQ	15W	6500K/4000K/3000K	1125	170×170 mm	149 mm (6″)
PC Panel Light (Zolo) RD/SQ	20W	6500K/4000K/3000K	1350	220×220 mm	199 mm (8″)
